Prismaweb Card Readers
Secure every entry with PRISMAWEB's beautifully designed, easy-to-install access control card readers and smart access control door equipment. Our range of card reader technology offers various options to suit your access control applications.

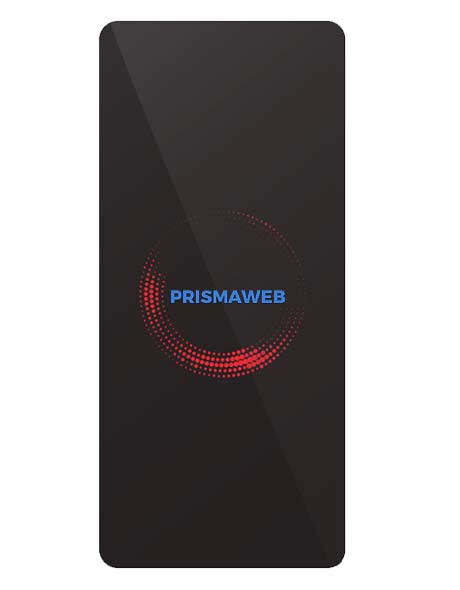

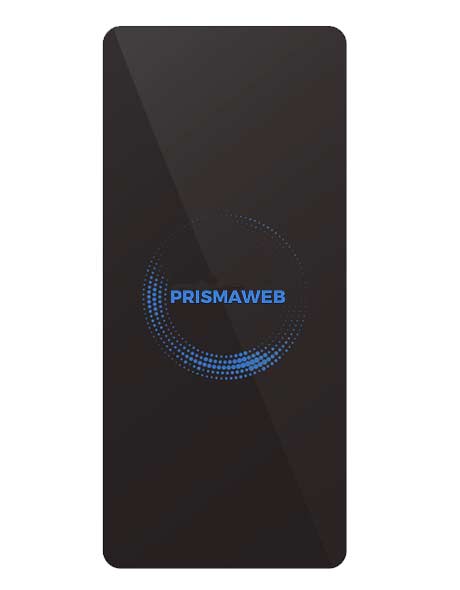

Looking for a highly advanced RFID access control reader that provides superior security? Check out our PRISMAWEB-DF series reader. Its water-resistant design, tempered glass surface, and PC/ABS casing with rated IP65 make it an ideal solution for indoor and outdoor environments.
Need a reader suitable for use in systems that require a high level of security? Our PRISMAWEB Desfire series reader supports DESFire® cards with DES and 3DES encryption. With advanced features and flexible options, this reader delivers reliable and secure access control that is easy to manage and maintain.
Choose PRISMAWEB for your access control needs and experience top-of-the-line security technology.
Card Readers
Features
- Serves as a versatile configurable reader bundled.
- Certified to IP 65 to secure the critical installation environment.
- Protected by DES & 3 DES MACing/ Enciphering.
- The inside buzzer and LED (RED and Blue) indicates Door Lock.
Access Control Card readers
Specifications
- Power: DC10-24V
- Input: EM 125KHz丨Mifare 13.56MHz（UID 4bytes,7bytes,Plus) 丨EM & Mifare丨NFC213-216丨Mobile NFC
- Output: Wiegand 26-44bit,47,56,58,64,66bit
- Waterproof: IP67 丨Plastic ABS
- Dimension: 83×40×18mm
Specifications
- Power: DC10-24V
- Input: EM 125KHz丨Mifare 13.56MHz（UID 4bytes,7bytes,Plus) 丨EM & Mifare丨NFC213-216丨Mobile NFC
- Output: Wiegand 26-44bit,47,56,58,64,66bit
- Waterproof: IP67 丨Plastic ABS
- Dimension: 83×40×18mm
Specifications
- Power: DC10-24V
- Input: EM 125KHz丨Mifare 13.56MHz（UID 4bytes,7bytes,Plus) 丨NFC213-216丨Mobile NFC丨EM & Mifare Output：Wiegand 26-44bit,47,56,58,64,66bit
- Waterproof: IP67 丨plastic ABS
- Dimension: 110×50×22mm

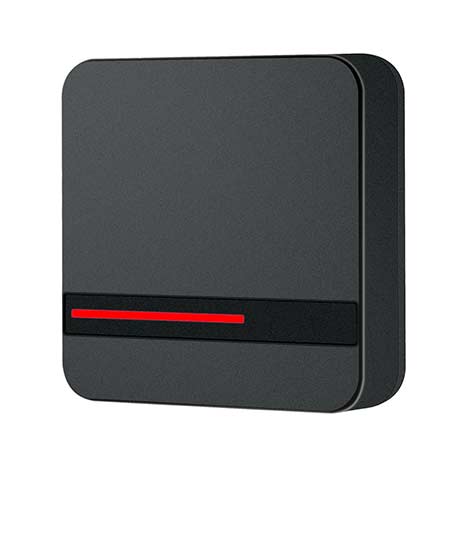

Specifications
- Power: DC10-24V
- Input: EM 125KHz丨Mifare 13.56MHz（UID 4bytes,7bytes,Plus) 丨NFC213-216丨Mobile NFC丨EM & Mifare
- Output：Wiegand 26-44bit,47,56,58,64,66bit
- Waterproof: IP67 丨plastic ABS
- Dimension: 86×86×20mm
Specifications
- Power: DC10-24V
- Input: EM 125KHz丨Mifare 13.56MHz（UID 4bytes,7bytes,Plus) 丨NFC213-216丨Mobile NFC丨EM & Mifare
- Output：Wiegand 26-44bit,47,56,58,64,66bit
- Waterproof: IP67 丨plastic ABS
- Dimension: 86×86×20mm

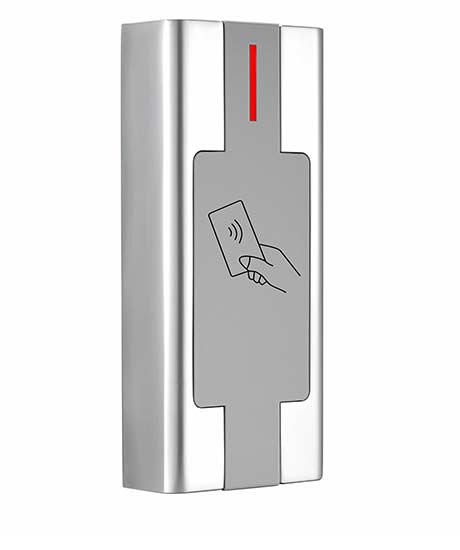

Specifications
- Power: DC10-24V
- Input: EM 125KHz丨HID 125KHz丨Mifare 13.56MHz (UID 4bytes,7bytes,Plus) 丨
- NFC213-216 丨Mobile NFC
- Output: Wiegand 26-44bit,47,56,58,64,66bit
- Waterproof: IP67丨Zinc alloy
- Factory default: Wiegand 26 or 34
Wiegand card output can be set by the users with the remote control or any kinds of external keypad.
Specifications
- Power: Wide range DC10-24V
- Inputs:EM 125KHz丨HID 125KHz丨Mifare 13.56MHz (UID 4bytes,7bytes,Plus) 丨
- NFC213-216 丨Mobile NFC
- Output: Wiegand protocol
- Two colors: black/gray
- Factory default: Wiegand 26
- Waterproof:IP67丨Plastic ABS
Wiegand card output can be set by the users with the remote control or any kinds of external keypad.

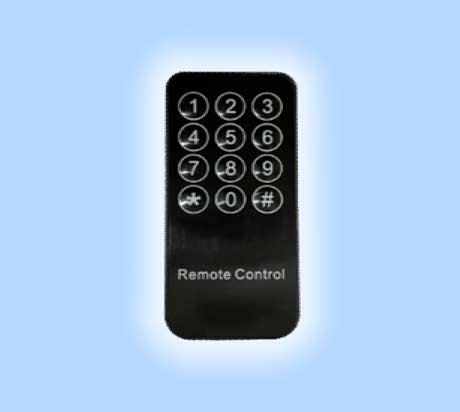

Remote Control
Models
PWC1
Specifications
Power: CR2032 lithium battery (3V) Set the Wiegand card output formats for the Wiegand card readers (HID/EM & HID & Mifare) without keypad.
